BUILDING STATISTICS

General Building Data

Occupancy or function types | Non-profit outpatient medical facility
Size | 105,000 square feet
Number of stories above grade & total levels | 4 levels, 60 feet above grade
Primary project team |
    General Contractor | Turner Construction
        [http://www.turnerconstruction.com/office-network/Anaheim]
    Architect | HOK
        [http://www.hok.com/]
    Structural | Saiful/Bouquet
        [http://www.saifulbouquet.com/]
    Mechanical, Plumbing | OED Engineers
        [http://www.oed-inc.com/]
    Electrical | DPB Engineers Inc.
        [http://dpbengineers.com/]
    Lighting Design Consultant | HLB Lighting Design, LA office
Dates of construction | October 2015 - Late 2017
Overall project cost | $90-million
Project delivery method | Design-bid-build

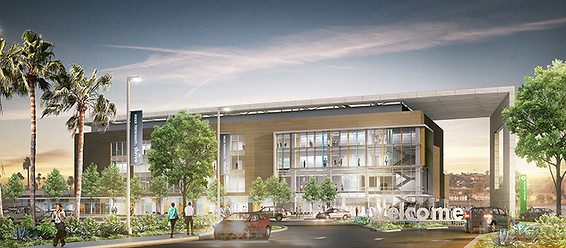

Non-Profit Outpatient Medical Facility & Site

The Non-Profit Outpatient Medical Facility, a modern medical building, offers vital services to those in need in the Southern California Region of the United States. The 105,000 square foot, four-story center offers services including a pharmacy, clinical lab, imaging, nurse clinic, physical therapy, health education, conference center, optometry, ophthalmology, administration, pediatrics, OB/GYN, dermatology, and adult primary care clinics. The approach to healthcare at this facility is molded around the deep understanding of patients’ attitudes, values, and beliefs in regards to how they perceive, utilize, and understand health care. With the patient’s care being the focus of the services offered in this building, the building itself should also be designed with patient well-being at the forefront. The Non-Profit Outpatient Medical Facility building itself is part of the larger scale, final master plan, which will include three mixed use medical office buildings. The scope of this study will include the Non-Profit Outpatient Medical Facility four-story building, the landscaped central pedestrian plaza, two miles of walking paths, and the parking lots.

Building Enclosures

Enclosures

Many factors were considered in the design of the buildings’ façade. Net zero energy efficient building standards drove façade design: total glazing could not exceed 30% of the South, East, and West façade skins. Many design iterations and façade studies were performed. Exterior materials include metal panels, perforated metal screens, X-tend stainless steel mesh, fibre C Oko skin panel wall, 12” deep fins, porcelain tile cladding, and spandrel glazing. Below are the North and West elevations illustrating some of the façade materiality.

Roofing

Roof Assembly Type 1 | Single Ply Roof (PTO | Class A WRoofing)

Thermoplastic polyolefin

½” cover board

Tapered insulation (where occurs)

Rigid polyisocyanurate insulation (R-30)

Structural concrete slab



Roof Assembly Type 2 | Pedestal System

Concrete pavers on pedestal pavers

½” drain board

Hot rubberized asphalt WP membrane

Expanded polystyrene rigid insulation sloped to drain

Structural concrete slab

Roof Assembly Type 3 | Green Roof

Modular vegetative trays

Non-moisture holding scrim sheet

Impermeable root barrier

Hot rubberized asphalt WP membrane

Expanded polystyrene rigid insulation sloped to drain

Structural concrete slab



Roof Assembly Type 4 | Penthouse Roof

Thermoplastic polyolefin

½” cover board

Expanded polystyrene rigid insulation sloped to drain

Metal deck or composite metal deck

Sustainability Features

Non-Profit Outpatient Medical Facility is a LEED Platinum Certification, net zero energy efficient building. Various active and passive sustainability features are used both in the building and on the site. Natural ventilation is used in the perimeter offices. On the exterior canopy rooftop feature, photovoltaic panels are used. Solar panels are installed in several areas around the site, including the central plaza and parking lots. There are two terraced green roofs, offering green space for the building’s administrative staff. The 2.5 acres of green space and two mile pedestrian path cutting through the site provide an abundant amount of green, friendly space for congregation and personal wellness.
